Grain Classifier

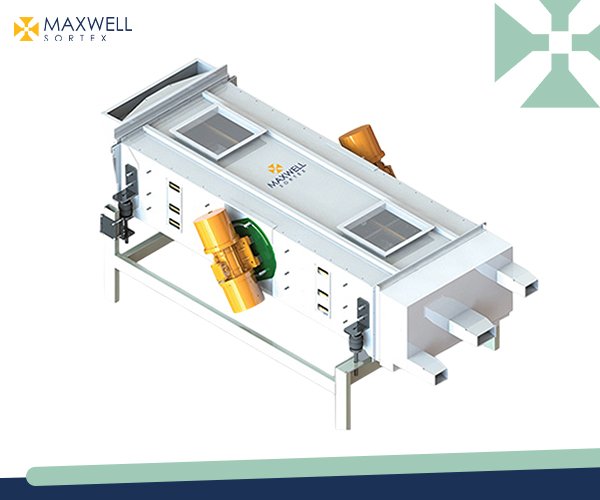

The Vibro Grader Classifier is a highly efficient machine designed for precise grading of grains and materials based on their size. With its advanced design, it effectively removes large impurities like sticks, husks, and leaves, as well as smaller impurities such as dirt and sand. The machine features two or three decks, each performing specific tasks: the first deck removes oversized material, the second deck eliminates fine dirt and sand, and the third deck separates smaller grain particles. Its adjustable settings, including screen inclination, stroke, and throw angle, ensure perfect and uniform classification for a wide range of applications, such as coffee, peanuts, corn, fried gram, beans, and peas.
Maintenance is made effortless with easily replaceable screens accessible through the swing-down inlet door, and the automatic screen cleaning system, featuring rubber balls, ensures maximum screen efficiency by preventing clogs. The Vibro Grader Classifier combines versatility, reliability, and precision to deliver consistent results in material grading and impurity removal.
Grain Classifier
Characteristics
- Vibro Grader can be used for grading grains by virtue of their size.
- There are two and three type of deck available with vibro motors and also we have available three typs of deck in our vibro classifier.
- It will removing large impurities such as stick, buck, and leaves as well as small impurities.
- In all type of deck are removes oversize material while second eliminate fine dirt and sand and the third deck secretes the small grain particles.
- The inclination of the screens, stroke and the angle of throw are adjustable, resulting in perfect and uniform classification.
- It can be used for a wide variety of applications such as for coffee, peanuts, corn, fried gram, beans, peas etc.
- The screens can easily be changed by swinging down the inlet door and sliding them out.
- The screen cleaning is automatic by means of rubber balls.
- A wide variety of rubber balls are ensuring that maximum holes are available at the screen for proper grading.
Special Features
- Easy and quick change of screen possible.
- Angle of the vibrating box will vary.
- Automatic cleaning of screens by means of rubber balls.
- Acrylic glass provided for visualizing material flow.
Advantage of Grain Classifier
Specifications
| Machine Type | CC63 | CC83 |
|---|---|---|
| No. of Screen | 2 to 4 | 2 to 4 |
| Power in HP/KW | 1.5/1.1 | 1.5/1.1 |
| Capacity | 1-1.2 TON | 1.5-2 TON |
| Weight in KG | 358 KG | 450 KG |
| Voltage/Frequency | 415/50HZ | 415/50HZ |
| Dimension in mm | 2600 X 1500 X 1200 | 3200 X 1500 X 1200 |
